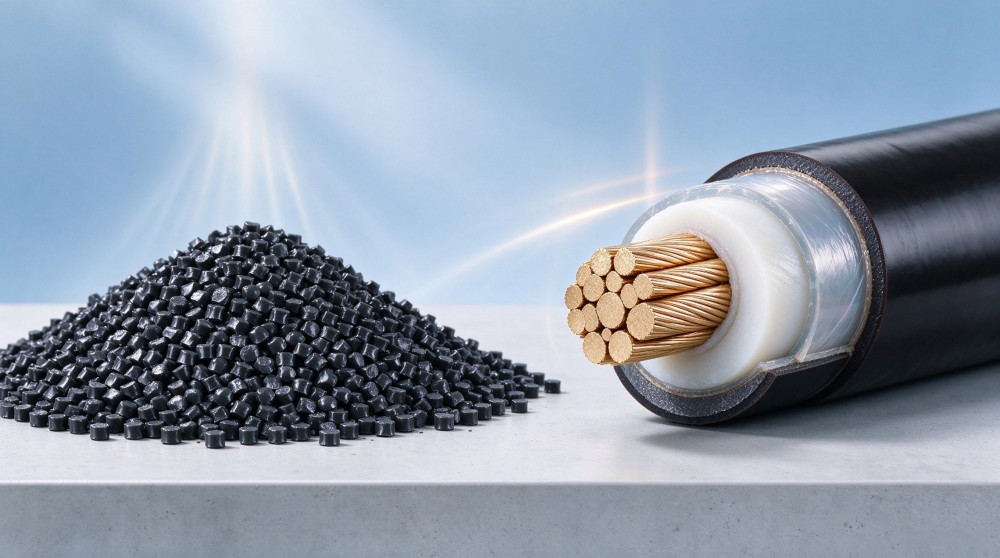

Flame retardant polyethylene cable compound

YHS62019

Flame retardant polyethylene sheath material (YHS62019) is made of high-purity polyethylene as the base material, adding halogen-free high-efficiency flame retardants, antioxidants, lubricants and other auxiliary agents, and mixing and plasticizing granulation. This product not only has excellent flame retardant properties, but also has good extrusion processability. It has been proved by environmental stress and thermal stress cracking test that the material has excellent resistance to cracking. It is suitable for flame retardant 35KV and 35KV and above Insulation material for power cables.

✦ Flame retardant polyethylene cable compound ✦ YHS62019 ✦ Halogen-free flame retardant PE ✦ Fast extrusion speed ✦ Excellent cracking resistance ✦ Power cable insulation compound ✦ 35kV flame retardant cable material

Data

Application

Name	Item	Use
Flame retardant polyethylene cable compound	YHS62019	Good flame retardancy and fast extrusion speed
Irradiated XLPE Cable Compound	YHS62020	Heat resistance, good insulation performance, smooth extrusion surface

Technical Data

Technical Specifications

Typical physical property data, subject to batch test reports.

Test project	Units	YHS62019
Density	g/cm3	1.22
Melt flow rate (190℃ × 2.16Kg)	g/10min	1.5
Tensile Strength	MPa	16.0
Elongation at break	%	650
Hot elongation test	200℃×15min×0.2MPa
Elongation under load	%	-
Permanent deformation	%	-
Air thermal aging	℃×h	100×240
Change rate of tensile strength	%	-4
Change rate of elongation at break	%	-9
20℃ volume resistivity	Ω.cm	6.0×10¹⁵
Dielectric strength	MV/m	33
Resistance to environmental stress cracking	h	>500
Oxidation induction period (200 ℃)	min	50
Low temperature	℃	-40 pass
Oxygen Index	%	28

⚠️ Note: The above data is a typical value obtained by testing the product and is not a standard for testing restrictions.

Recommended

Extrusion Process

When the storage environment is wet or the production surface is required to be high, the particles can be dried in a hot air hopper at 70℃ for 1-2 hours.

It is recommended to use a low compression ratio screw extrusion with a compression ratio of 1.2-2.0:1.Before extrusion, the screw should be cleaned to ensure the cleanliness of the product. It is recommended to use 80 mesh or 100 mesh filter screen to avoid impurities in the extrusion process, and to ensure the melt pressure to obtain a good appearance and material density.As the difference between the actual temperature of the melt and the indicated value of the temperature control table varies with the type of extruder, the user is requested to select the appropriate temperature according to the specific situation of the extruder used.The following temperatures can be used as reference for start-up and commissioning:

Position	Cylinder I	Cylinder II	Cylinder III	Cylinder IV	Cylinder V	Head and mold
Temperature (℃)	140±5	170±5	175±5	180±5	185±5	190±5

Packaging & Storage

Packaging and storage

(25 ± 0.2) kg / bag, inner aluminum plastic composite bag, outer kraft paper bag (or customer specified packaging)
Stored in dry and ventilated place
Prevent sun, rain and water
Storage period is 6 months
