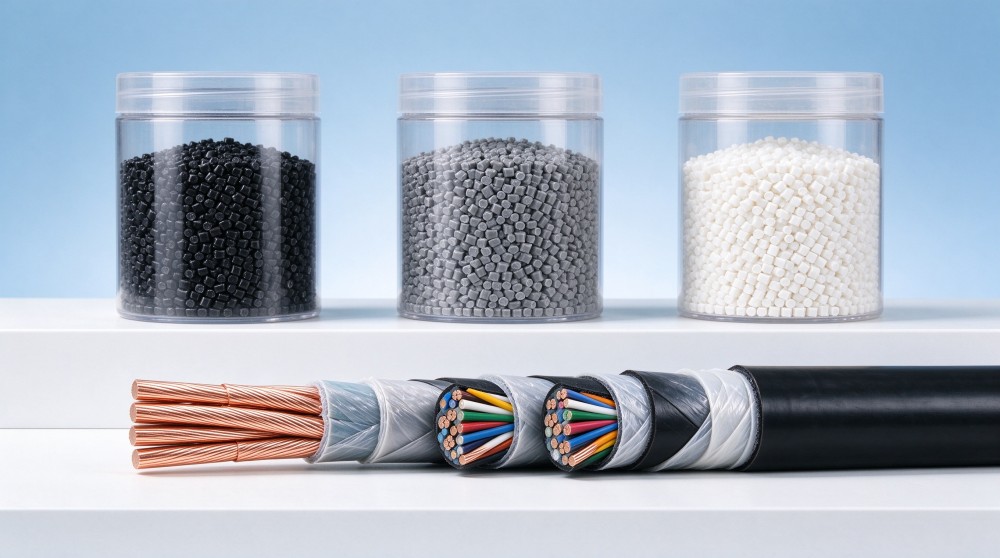

150℃ Halogen FR TPEE Compound

YHS62025D-150

150℃ oil-resistant halogen-containing flame-retardant crosslinked polyester elastomer cable compound (YHS62025D-150) uses block copolymer TPEE with polyester hard segments and polyether soft segments as base resin. High-efficiency flame retardants, antioxidants, crosslinking sensitizers and other processing aids are incorporated, followed by mixing, plasticizing and pelletizing. It delivers high heat resistance, high strength and solvent resistance; custom hardness, weather resistance, UV resistance and matte surface are optional. This halogen-containing grade features high flame retardancy, high strength and oil resistance for jackets of high-oil-resistant locomotive cables, oil well cables and equipment wires.

✦ 150℃ crosslinked TPEE compound ✦ Halogen-containing flame retardant ✦ High strength ✦ High oil resistance ✦ Locomotive cable jacket ✦ Oil well cable ✦ Polyester elastomer

Technical Data

Technical Specifications

Typical physical property data, subject to batch test reports.

Test project	Units	YHS62025D-150
Density	g/cm3	1.22
Original tensile strength	MPa	13.0
Original elongation at break	%	430
Air thermal aging	℃×h	180×168
Change rate of tensile strength	%	-14
Change rate of elongation at break	%	-16
Low temperature impact embrittlement temperature	℃	-40 pass
20℃ volume resistivity	Ω.cm	2.0×10¹³
Oxygen Index	%	29
Resistance to mineral oil (902 #)	℃×h	100×70
Change rate of tensile strength(mineral oil)	%	-20
Change rate of elongation at break(mineral oil)	%	-18
Fuel resistant oil (903 #)	℃×h	70×168
Change rate of tensile strength(fuel oil)	%	-20
Change rate of elongation at break(fuel oil)	%	-16
Thermal deformation (90℃ *4H)	%	7
Halogen acid gas content	mg/g	-
Flame retardant grade (single vertical)	-	VW-1

⚠️ Note: The above data is a typical value obtained by testing the product and is not a standard for testing restrictions.

Recommended

Extrusion Process

When the storage time is long or the environment is humid, or the product surface requirements are high, the pellets can be dried in a hot air hopper at 60-70 ℃ for 1 to 2 hours before use.

It is recommended to use screw extrusion with L / D≥25 and compression ratio of 1.5 ~ 2.0: 1. The screw should be cleaned before extrusion to ensure the cleanliness of the product. It is recommended to use 80 mesh or 100 mesh filter to avoid impurities in the extrusion process, while ensuring the melt pressure to obtain a good appearance and material compactness. Because the difference between the actual temperature of the melt and the value indicated by the temperature control meter varies with the type of extruder, users are requested to choose the appropriate temperature according to the specific situation of the extruder used. The following temperatures can be used as a reference for commissioning:

Position	Cylinder I	Cylinder II	Cylinder III	Cylinder IV	Cylinder V	Head and mold
Temperature	150±10	175±10	180±10	185±10	190±10	200±10

Packaging & Storage

Packaging and storage

(25 ± 0.2) kg / bag, inner aluminum plastic composite bag, outer kraft paper bag (or customer specified packaging)
Stored in dry and ventilated place
Prevent sun, rain and water
Storage period is 6 months
