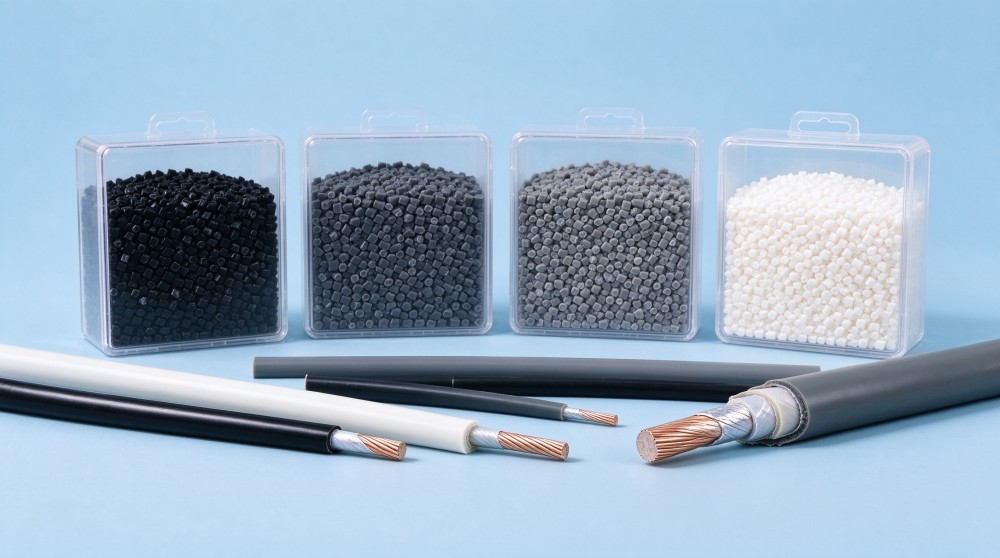

EN-Standard PV Cable Compound

YHS62027(EN)-125

Irradiation cross-linked EN photovoltaic cable material (YHS62027(EN)-125) adopts special polyolefin and heat-resistant elastomer as the base material, added with flame retardants, smoke suppressants, cross-linking sensitizers, antioxidants and processing aids, then mixed, plasticized and pelletized. It possesses excellent physical and mechanical properties, electrical properties, flame retardancy and processability, together with good low-temperature resistance, high-temperature resistance, ozone resistance and solvent resistance. It is suitable for photovoltaic cable insulation and complies with **EN 50618**, with low smoke emission performance.

✦ Irradiation cross-linked EN PV compound ✦ Photovoltaic cable insulation ✦ EN 50618 ✦ Low smoke emission ✦ High temperature resistance ✦ Ozone resistance ✦ Solvent resistance

Technical Data

Technical Specifications

Typical physical property data, subject to batch test reports.

Test project	Units	YHS62027JENE	YHS62027HEN
Density	g/cm3	1.35	1.43
Tensile strength (after irradiation)	MPa	12.0	13.0
Elongation at break (after irradiation)	%	360	240
Air thermal aging	℃×h	150×168	150×168
Change rate of tensile strength	%	+6	+5
Elongation at break rate	%	-6	-7
Thermal life test	℃×h	185×100	185×100
Elongation at break retention	-	75	75
Hot elongation test	-	250℃×15min×0.2MPa	250℃×15min×0.2MPa
Elongation under load	%	40	40
Permanent deformation	%	0.5	1
High temperature pressure (140℃*4H)	-	15	16
Low temperature	℃	-40 pass	-40 pass
20℃ volume resistivity	Ω.cm	8.0×10¹⁴	2.5×10¹⁴
Dielectric strength	MV/m	30	28
Oxygen Index	%	32	38
Smoke density (Flame method)	-	65	70
Smoke density (Flameless method)	-	150	160
Halogen acid content	mg/g	0.1	0.1
pH value	μS/mm	6.5	6.2

⚠️ Note: The above data is a typical value obtained by testing the product and is not a standard for testing restrictions.

Recommended

Extrusion Process

When the storage environment is wet or the production surface is required to be high, the particles can be dried in a hot air hopper at 70℃ for 1-2 hours.

It is recommended to use a low compression ratio screw extrusion with a compression ratio of 1.2-2.0:1.Before extrusion, the screw should be cleaned to ensure the cleanliness of the product. It is recommended to use 80 mesh or 100 mesh filter screen to avoid impurities in the extrusion process, and to ensure the melt pressure to obtain a good appearance and material density.As the difference between the actual temperature of the melt and the indicated value of the temperature control table varies with the type of extruder, the user is requested to select the appropriate temperature according to the specific situation of the extruder used.The following temperatures can be used as reference for start-up and commissioning:

Position	Cylinder I	Cylinder II	Cylinder III	Cylinder IV	Cylinder V	Head and mold
Temperature	120±5	150±5	160±5	165±5	170±5	175±5

Packaging & Storage

Packaging and storage

(25 ± 0.2) kg / bag, inner aluminum plastic composite bag, outer kraft paper bag (or customer specified packaging)
Stored in dry and ventilated place
Prevent sun, rain and water
Storage period is 6 months
