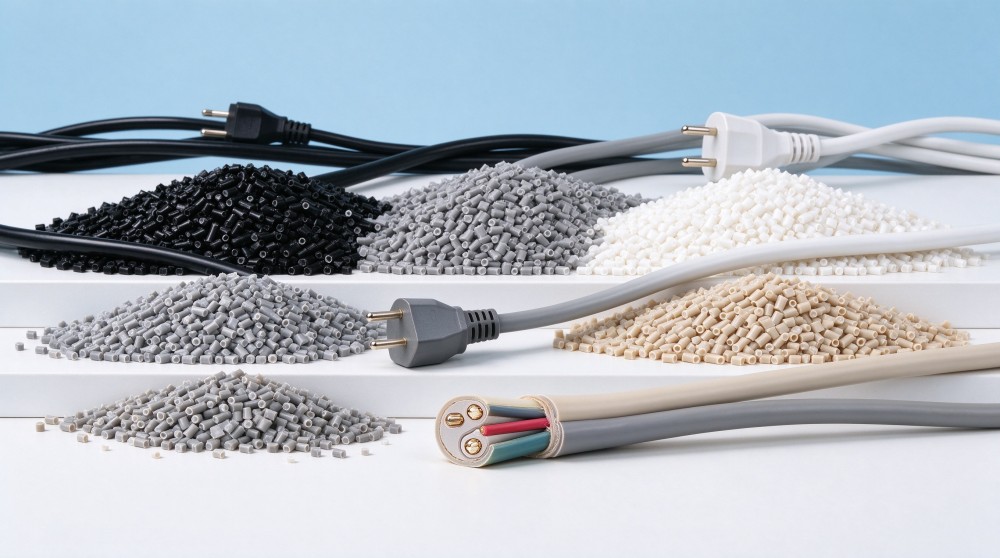

Australian-Standard PVC Compound

YHS62062H & YHS62062J

Australian Standard PVC cable compounds (YHS62062 series, including YHS62062H sheathing material for 5V-H90 and YHS62062J insulation material for V-J90) use polyvinyl chloride resin as the base, compounded with plasticizers, light & heat stabilizers, antioxidants and other additives via mixing and plasticizing granulation. They feature excellent mechanical performance and processability. This series complies with AS/NZS 3808 standard, and satisfies RoHS, REACH, PAHs and other EU & US environmental requirements, widely applied for electrical appliance wires.

✦ Australian standard PVC cable compound ✦ AS/NZS 3808 ✦ 5V-H90 PVC sheath ✦ V-J90 PVC insulation ✦ PVC wire material ✦ RoHS REACH PAHs compliant ✦ Appliance cable PVC

Recommended

Extrusion Process

Note: The above data is a typical value obtained by testing the product and is not a standard for testing restrictions

Test project	Units	YHS62062H	YHS62062J
Tensile strength before aging	≥MPa	12.5	12.5
Tensile strength after aging	≥MPa	-	-
Tensile strength retention	%	+75	+75
Elongation at break before aging	≥%	150	150
Elongation at break after aging	≥%	-	-
Elongation at break retention	%	+65	+65
200℃ thermal stabilization time	≥min	-	-
Surface resistivity at 20 ℃	≥Ω·M	-	4.0×10¹⁰
Dielectric strength	≥MV/M	18	20
Heat aging temperature	℃	115±2	115±2
Heat aging time	H	504	504
Thermal deformation	≤%	50	50
Impact Embrittlement temperature	℃	-15	-15
Thermal aging quality loss	≤g/m²	25	20

Packaging & Storage

Packaging and storage

(25 ± 0.2) kg / bag, inner aluminum plastic composite bag, outer kraft paper bag (or customer specified packaging)
Stored in dry and ventilated place
Prevent sun, rain and water
Storage period is 6 months
